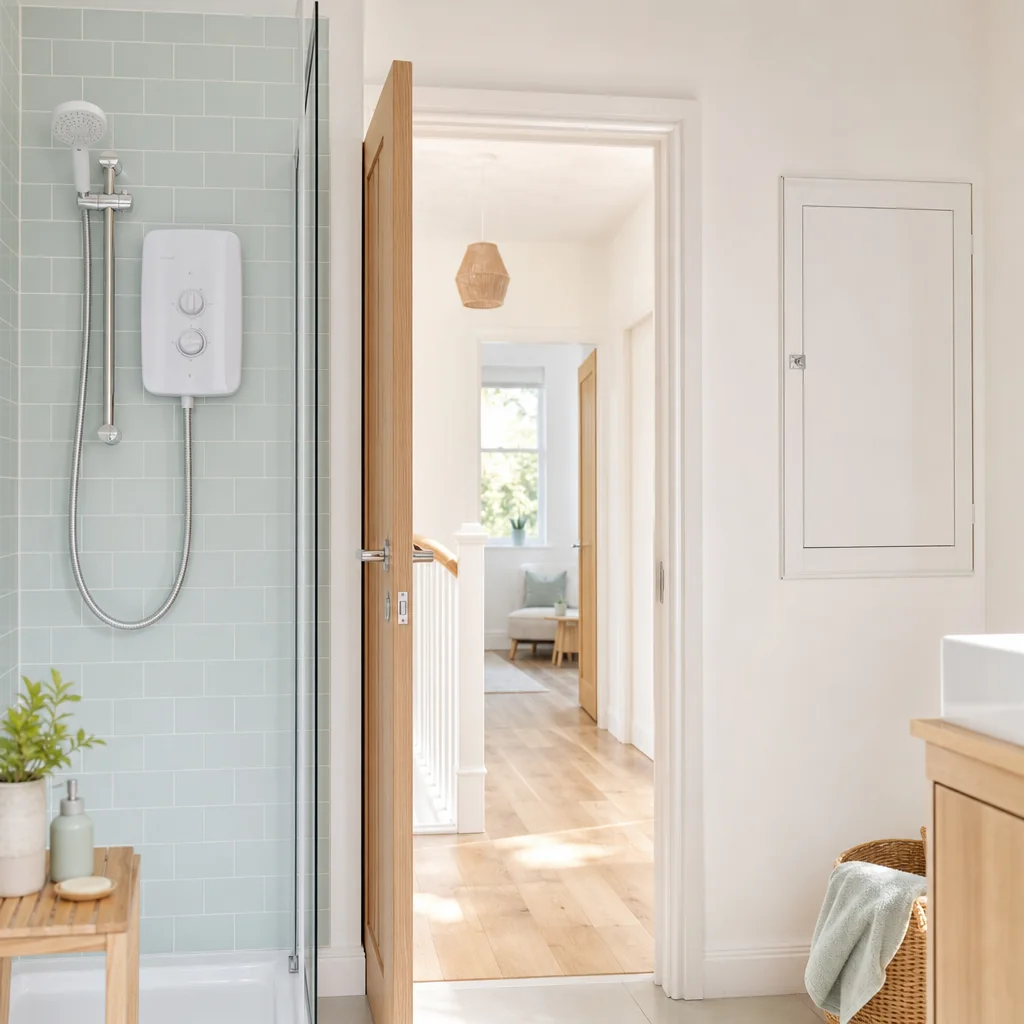

If your shower tripped the electrics, turn the shower off at its normal control and leave it unused while you check the consumer unit from a dry, safe position. A cooker, oven, hob or immersion heater can create a similar trip. Reset the moved device once only with the appliance off. If it will not reset, trips before the appliance is switched on, or trips again when the appliance starts, stop. Heat, burning smells, buzzing, water or visible damage require urgent professional assessment.
RCD or MCB?The operated device points to the type of testing required.
Cold or warmed up?Trip timing can help locate heating-element insulation failure.
Check the isolatorHeat or damage at a switch makes further use unsafe.

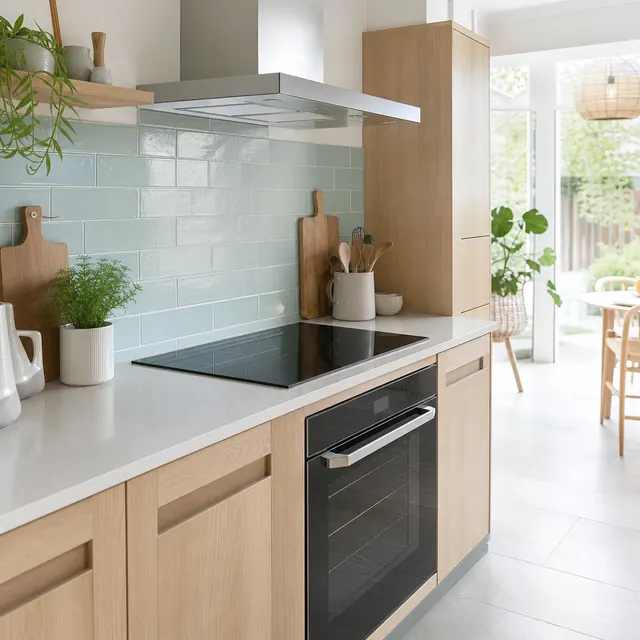

Circuit suitabilityLoad, cable, connections and protection are assessed together.
What should I do if my shower or cooker trips the electrics?

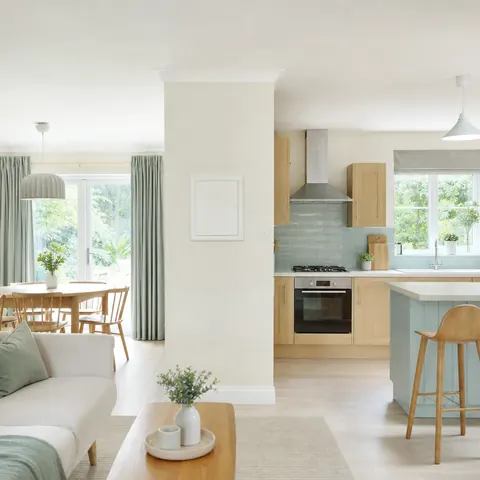

Switch the appliance off at its normal control. From a dry, safe position, reset the moved MCB, RCD or RCBO once. If it will not hold with the appliance off, or trips when the appliance starts or warms, leave the appliance and affected circuit unused. Heat, burning, noise, water, smoke or visible damage need urgent help.
Why did a high-power appliance trip the board?
The operated device and the point in the heating cycle help distinguish possible leakage, overcurrent and connection faults, but proper instruments are needed for a diagnosis.
Technical advice for high-current loads
A trip only after the element warms is especially useful evidence. We test insulation resistance cold and, where appropriate, investigate the heated condition rather than assuming the breaker is at fault.
Dan WhitakerSenior Electrician & Technical Reviewer
Why high-power appliance circuits trip
Electric showers, cookers and immersion heaters turn electrical energy into heat and normally draw substantial current. They are commonly supplied by dedicated circuits because their sustained demand is unlike a table lamp or small plug-in appliance. A trip is therefore not simply evidence that the property used “too much electricity”: the appliance, isolator, cable, terminations and protective device all form part of the diagnosis.

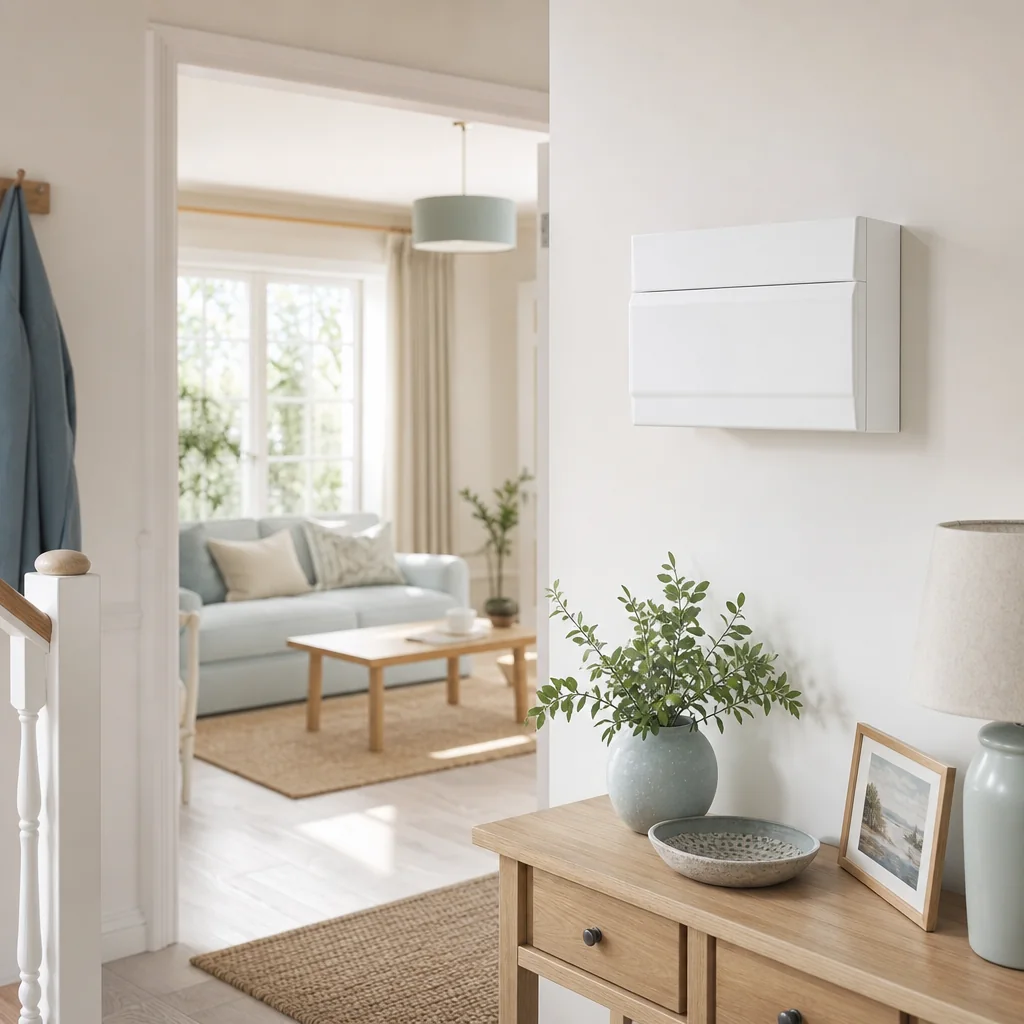

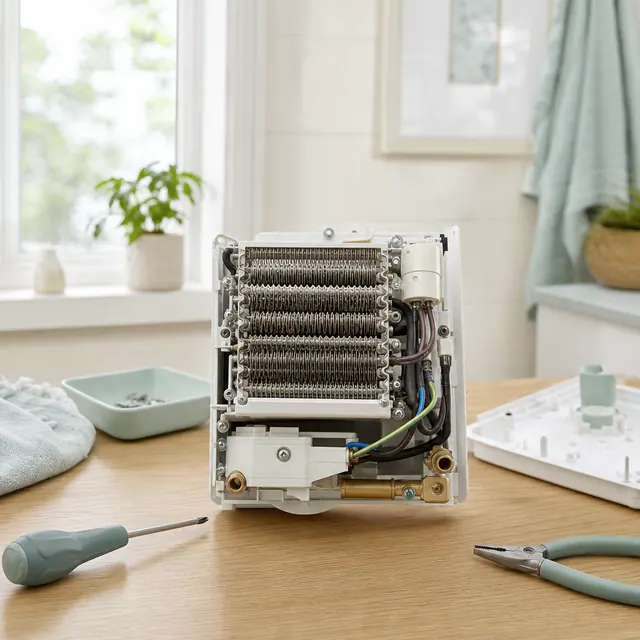

Heating elements can deteriorate so current leaks through damaged insulation towards earth, particularly as an element warms during use. That pattern may operate an RCD or RCBO. An MCB is intended to respond to overcurrent, including overload or a short circuit. Some boards use an RCBO for one circuit, combining both functions, so the label and device type matter. Looking at the switch is useful; opening the consumer unit is not safe.
Useful distinction An MCB responds to overcurrent; an RCD responds to leakage. An RCBO combines both protections on one circuit.
Never remove an isolator or appliance cover
What the timing of the trip can reveal
A trip the instant the shower or cooker is selected can fit a severe appliance fault, damaged control or wiring problem. A trip after the water has heated or the oven has warmed can fit insulation breakdown that appears with temperature. If the protective device cannot remain on while the appliance's own control is off, the fixed circuit, isolator, connection arrangement or another circuit sharing that RCD may need investigation.
Recent replacement also matters. A new cooker may have a different connected load from the old one, or a connection fault may have been introduced during installation. A neutral-to-earth fault can operate RCD protection even though an MCB does not see an overload. None of these patterns confirms the cause remotely, and repeated test runs can worsen heat damage.
Bathroom caution Do not touch a wet shower switch, pull cord or consumer unit. Keep others away until the area is safe.
Isolators, pull cords and heat damage
A shower pull-cord switch or wall isolator carries the shower load. Discolouration, a hot faceplate, crackling, stiffness, an unusual smell or a cord mechanism that behaves differently can indicate damage or a poor termination. Steam and moisture around a bathroom control add another concern. Do not remove its cover, tug the cord repeatedly or touch a wet switch; keep the shower out of use.

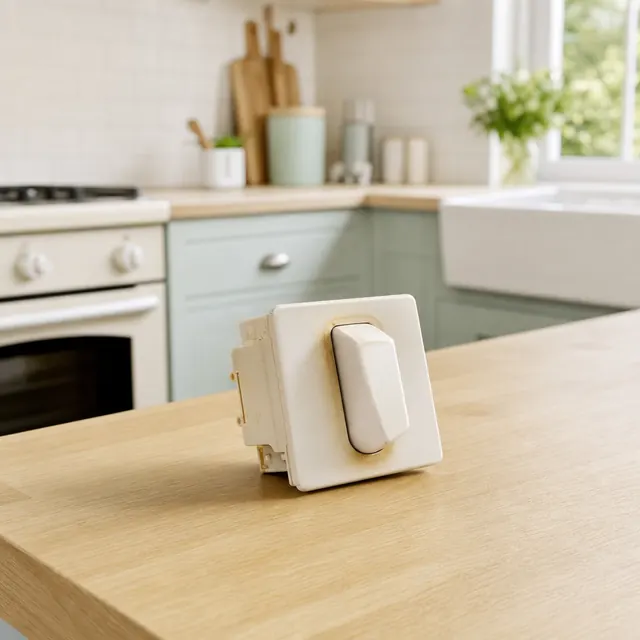

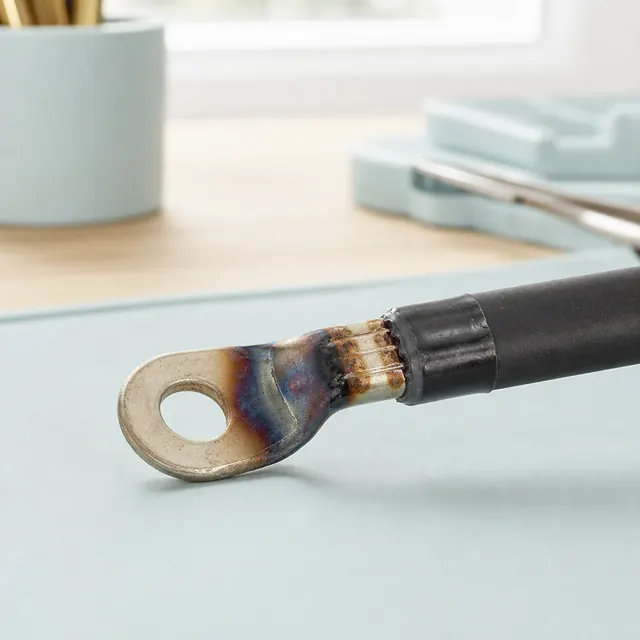

Cooker control switches and connection units can also overheat where a terminal is loose or damaged. If a cooker switch is hot, marked, noisy or smells burnt, do not operate it again. Turn the circuit off only when the consumer unit and route to it are dry, clear and undamaged. Smoke or fire means leave the building and call 999.
What an electrician tests before recommending repair or replacement
After safe isolation, an electrician can inspect accessible terminals at the appliance connection, isolator and consumer unit for heat damage or looseness. Insulation-resistance testing helps identify leakage in the circuit or heating element. Suitable measurements can check operating load against the circuit design, while protective-device tests establish whether the RCD or related protection operates correctly.
An appliance may be repairable when a replaceable element, control or sound termination is the isolated cause and the remainder is suitable. Replacement becomes more likely where there is extensive heat damage, water ingress, multiple deteriorated parts, an unsuitable connected load or a manufacturer-supported repair is unavailable. The circuit itself may require remedial work regardless of whether the appliance is retained.
Installing a new circuit, replacing a consumer unit, or electrical work in the special location around a bath or shower can fall within notifiable work under Part P in England. A registered competent person can assess the design, carry out the work and provide the appropriate certification. Simply fitting another high-rated appliance without checking the circuit is not a safe shortcut.
Part P notifiable work includes installing a new circuit, replacing a consumer unit and additions or alterations in the special location around a bath or shower.
Insulation and load tests identify the faultAn electrician can safely separate appliance failure, terminal damage, circuit suitability and protective-device operation.Request a callback
Safe limits for household checksUse only normal controls that are dry, intact and safely reachable. Never open an appliance, isolator or consumer unit, and never repeatedly energise equipment to reproduce a trip.
When the trip is urgent
Stop immediately for a hot or wet isolator, burning odour, crackling, smoke, sparks or repeated operation. Call 999 if there is fire.
TRACEFORM is a NICEIC registered electrician with qualified and insured electricians who explain whether the appliance, controls or circuit need attention.
NICEIC registeredAssessed contractor
Qualified & insuredHigh-current circuit work
Measured diagnosisNot assumptions from the trip alone
Part P awareNotifiable work identified where relevant
Technically reviewed
Dan Whitaker
Senior Electrician & Technical Reviewer
Qualified & insured18th Edition, public liability cover
10+ years' experienceDomestic & commercial, Greater Manchester
“A shower or cooker that trips only under load needs the element, terminals and circuit tested together. Resetting tells you a pattern; insulation and load measurements establish the fault.”
Dan Whitaker
Reviewed for shower and cooker circuit safety
11 Sept 2026
Reviewed for high-current appliance circuits, RCD and MCB trip behaviour, safe isolation boundaries and Part P implications.
Across every Greater Manchester borough
24/7 local response with an estimate confirmed when you call
24/7 emergency support is available throughout the local coverage area.
“At breakfast time our oven cut out whenever it began heating. TRACEFORM attended our Chorlton home, isolated the cooker circuit and found a heat-damaged terminal behind the cooker control switch. The electrician replaced the damaged control and termination, tested the circuit insulation and measured the oven load before restoring power. We could cook safely again and received a clear explanation of why the trip had happened.”
Rachel T, Cheadle Hulme – Verified customer
A cooker control fault found in Chorlton
Appliance and circuit testedThe whole electrical path is considered
Heat damage recognisedIsolators and terminals inspected
Local responseManchester and surrounding boroughs
Options explainedKnow why repair or replacement is advised
Answers on warming cycles, isolators, replacement choices and newly installed cookers.
Why does the shower run briefly before the power trips?
A fault can emerge only as a heating element warms, including insulation deterioration that allows current to leak towards earth. Heat at an isolator or connection can also develop under sustained load. Leave the shower unused after a repeat trip; timing is a clue for the electrician, not a reason to keep testing it.
What does it mean if the cooker trips before any ring heats?
A trip at selection may involve the cooker, its connection, control switch, fixed circuit or a neutral-to-earth fault. It cannot be identified safely from timing alone. Turn every cooker control off, do not remove panels or connection covers, and arrange testing if the protective device will not hold or operates again.

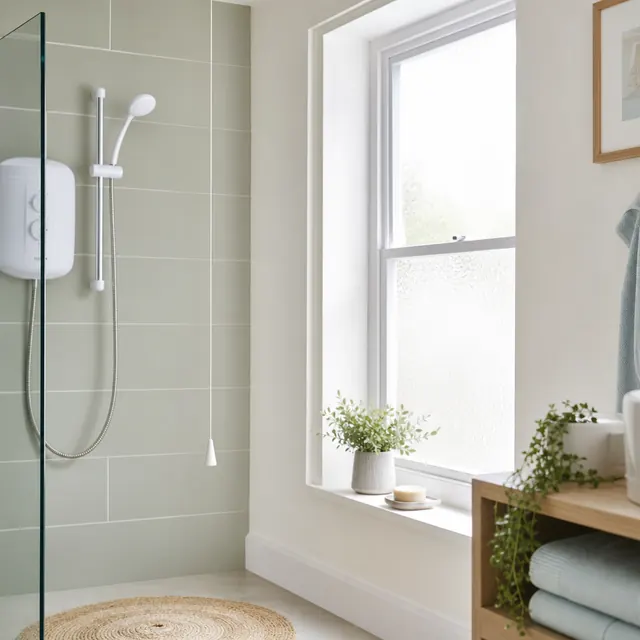

Can a damp shower pull cord cause an RCD operation?
Moisture or damage at a bathroom isolator can contribute to leakage, but only inspection and testing after safe isolation can establish this. Do not touch a wet pull cord or switch, and do not remove its cover. Keep the bathroom clear and seek urgent help if there is crackling, heat, smell or discolouration.

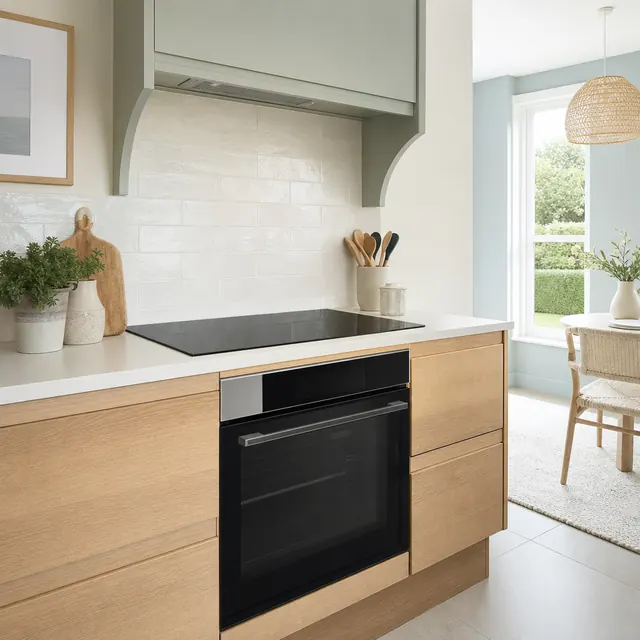

Why did tripping start after a new oven or hob was fitted?
The replacement may have a different load, need a different connection arrangement, expose a pre-existing circuit limitation, or have an installation fault such as an incorrect neutral-earth connection. Stop using it and contact the installer or a qualified electrician. The circuit design and manufacturer's instructions need checking before further use.
Does an MCB trip prove the shower uses too much power?
No. An MCB can operate because of overload or short-circuit current, while the visible position does not prove why it operated. Circuit rating, cable size, installation method, connections and appliance demand must be assessed together. Never substitute a larger protective device to make the symptom disappear.
Should I replace the electric shower or repair its circuit first?
That decision follows diagnosis. A failed internal part may make appliance repair or replacement appropriate; damaged terminals, unsuitable cable, a faulty isolator or inadequate circuit design require electrical remedial work. Ask for the test findings and certification requirements before choosing, rather than buying another shower solely because the old one tripped.
